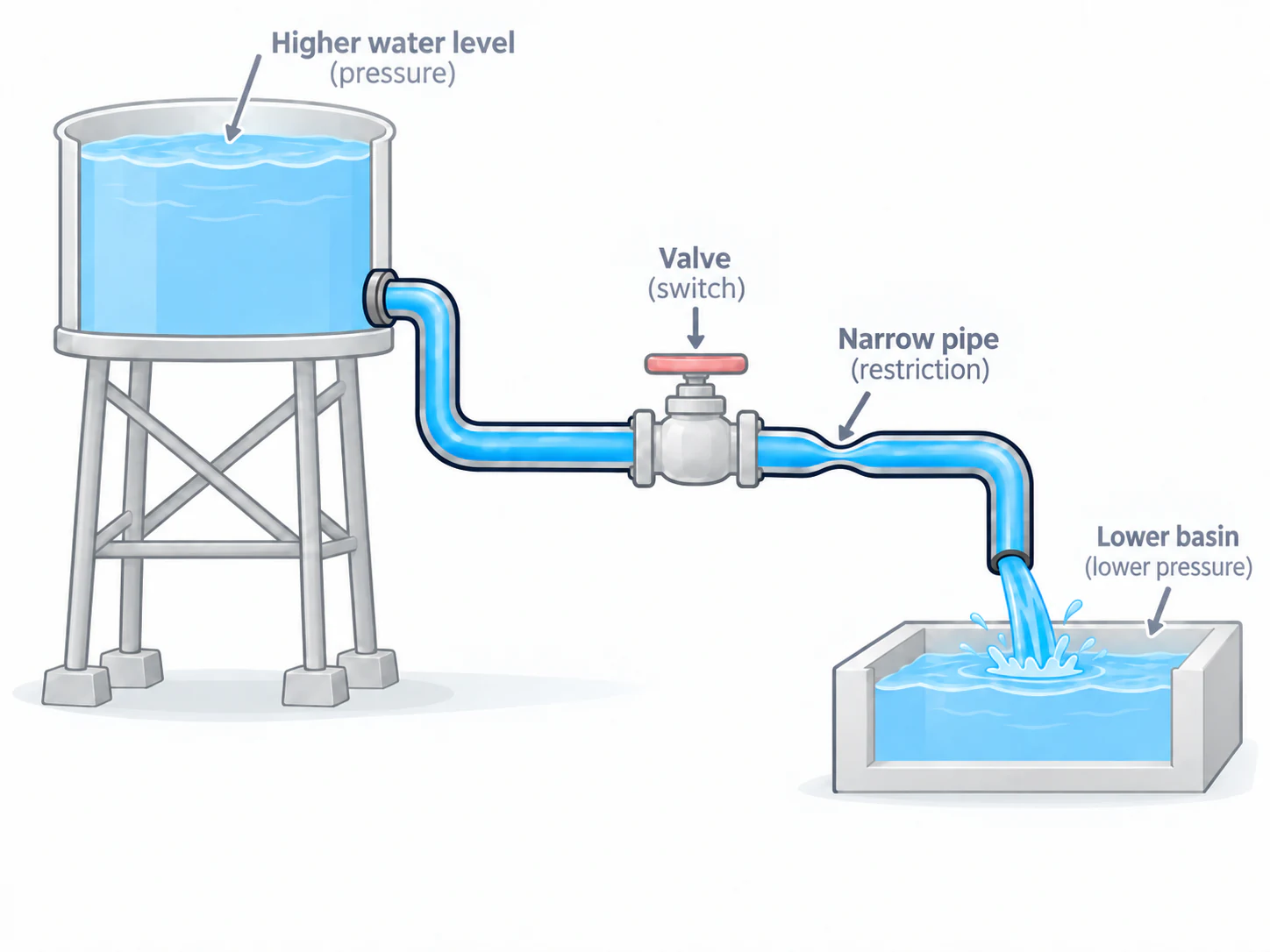

Water needs a path to travel.
Electricity also needs a path.

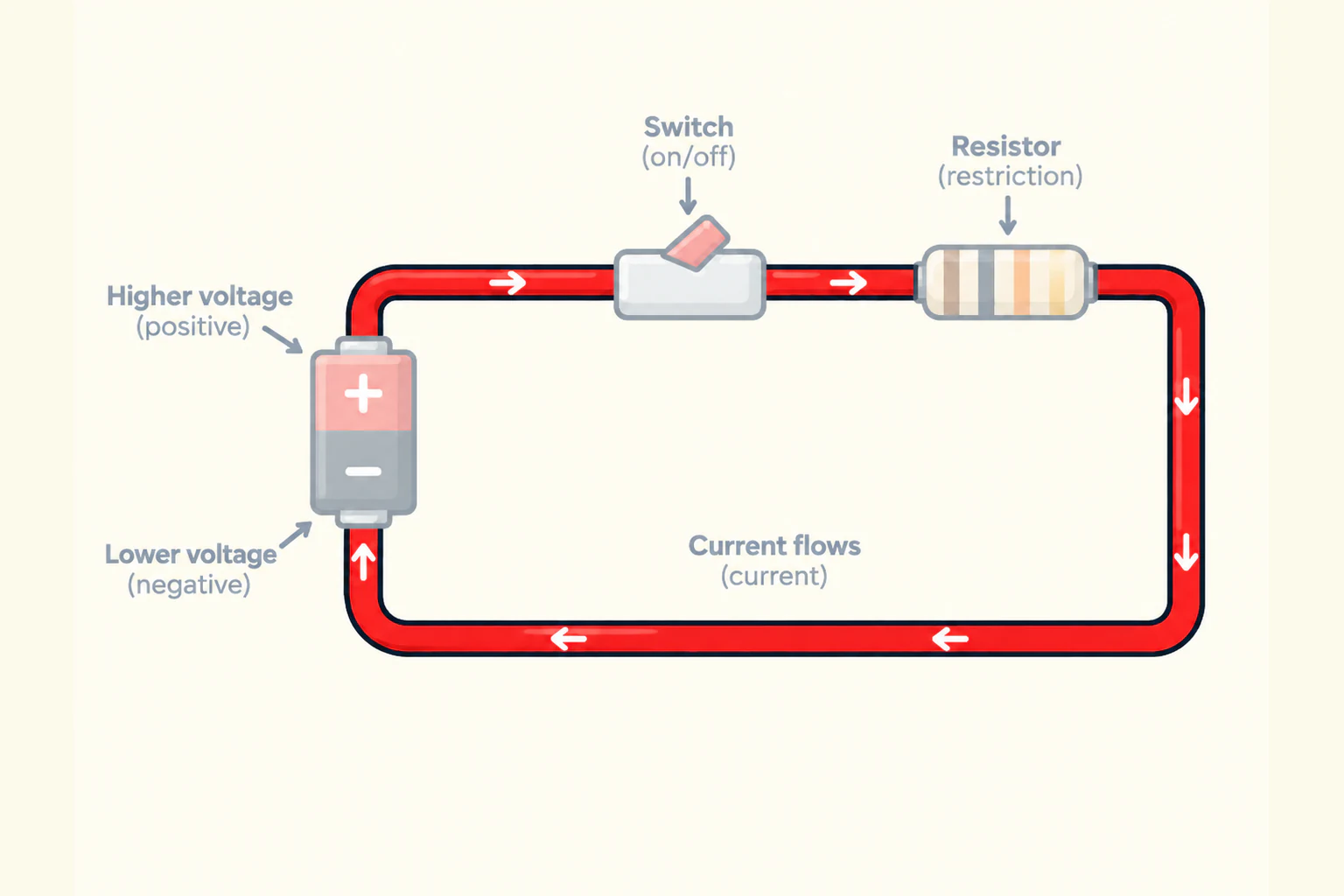

A wire gives electrical current a path to travel.
Learn the basics
Electricity Explained With Water
Electricity can feel difficult because we cannot see it moving.
Water gives us a simple way to understand what is happening.
1 / 6
The path
Start with the water example, then compare it with electricity.
Why use water to understand electricity?

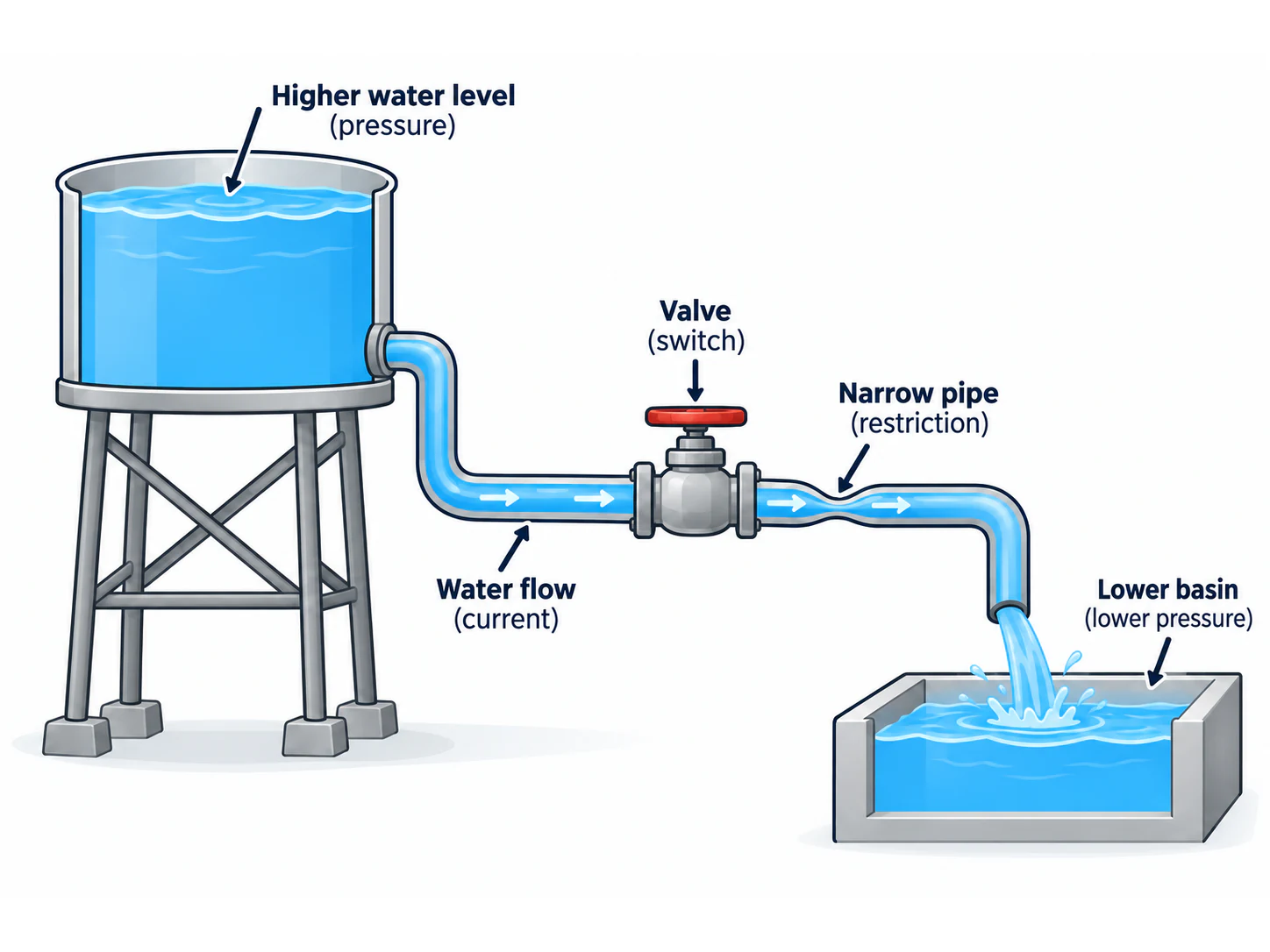

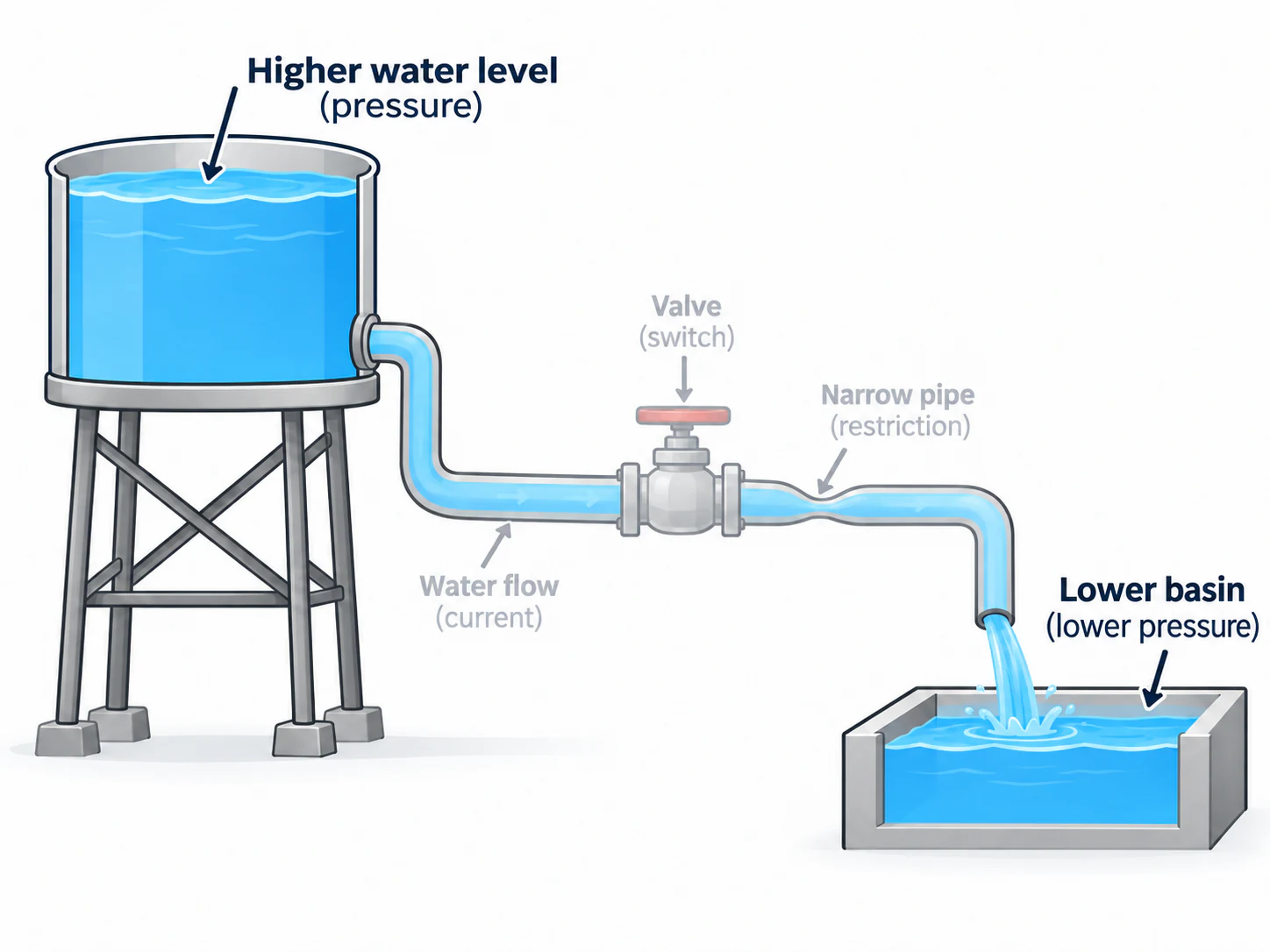

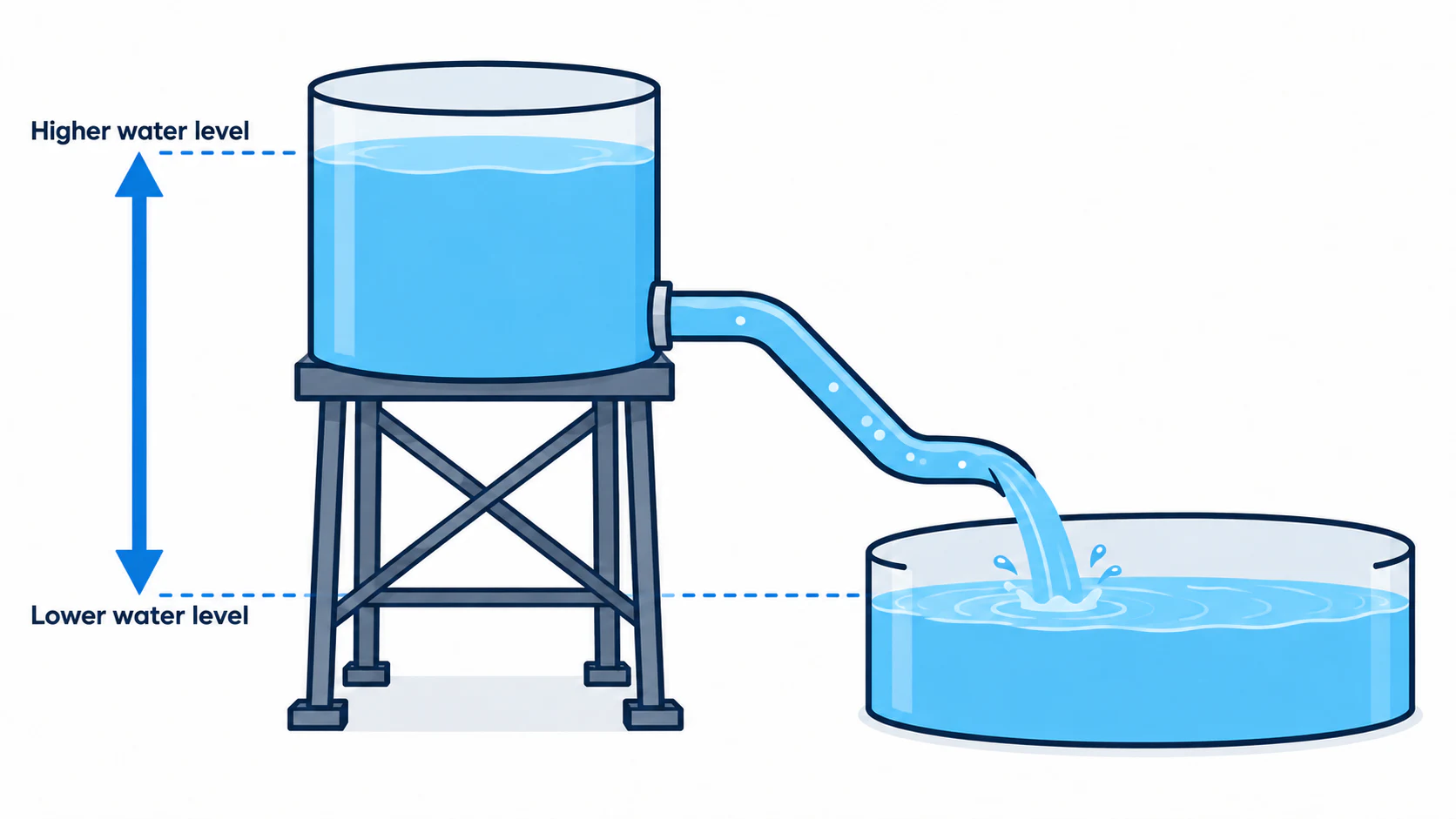

Water is visible, so it gives us a familiar picture for ideas that are otherwise difficult to see. A pipe provides a path, flowing water has a measurable rate, and a pressure or height difference gives the water a reason to move.

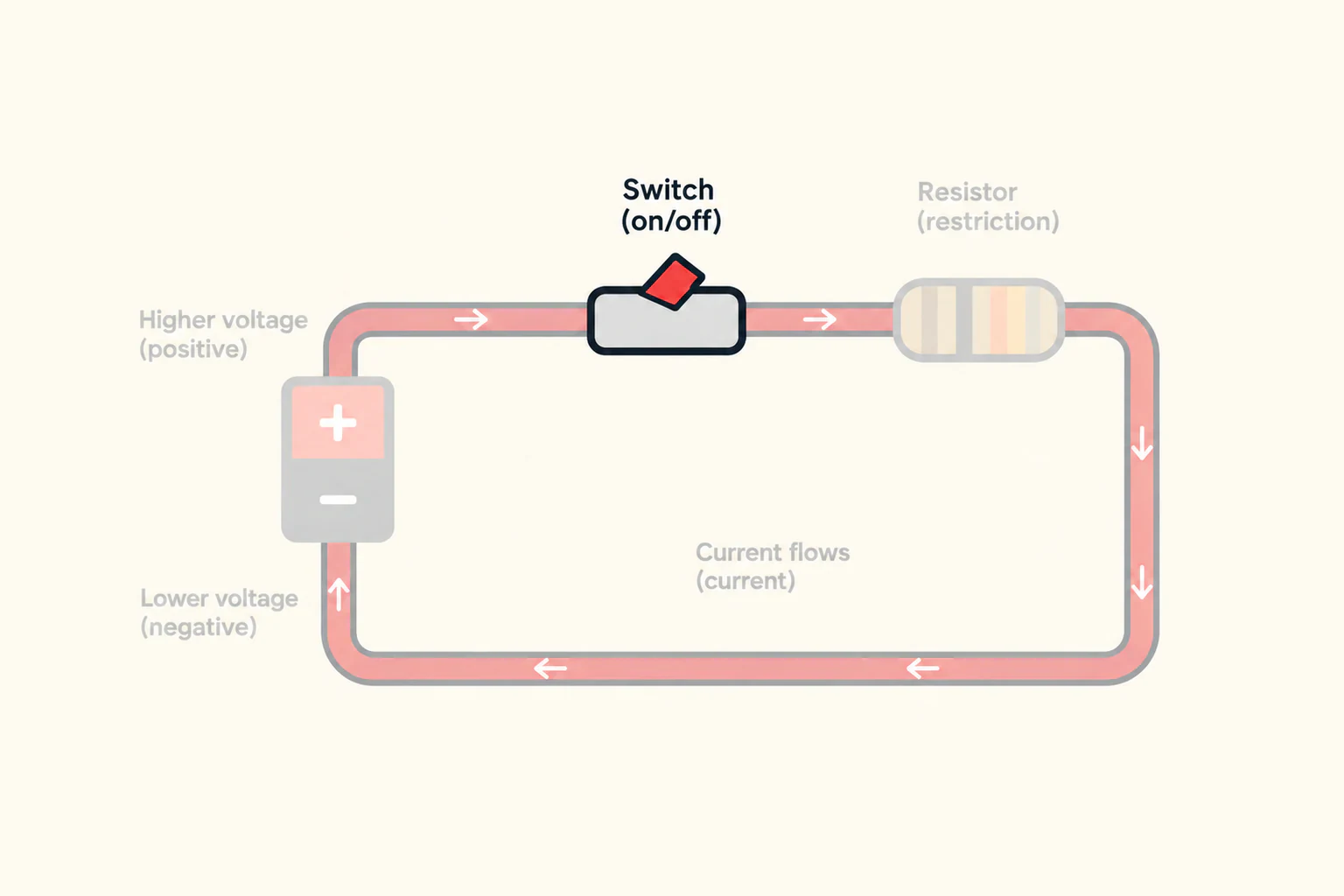

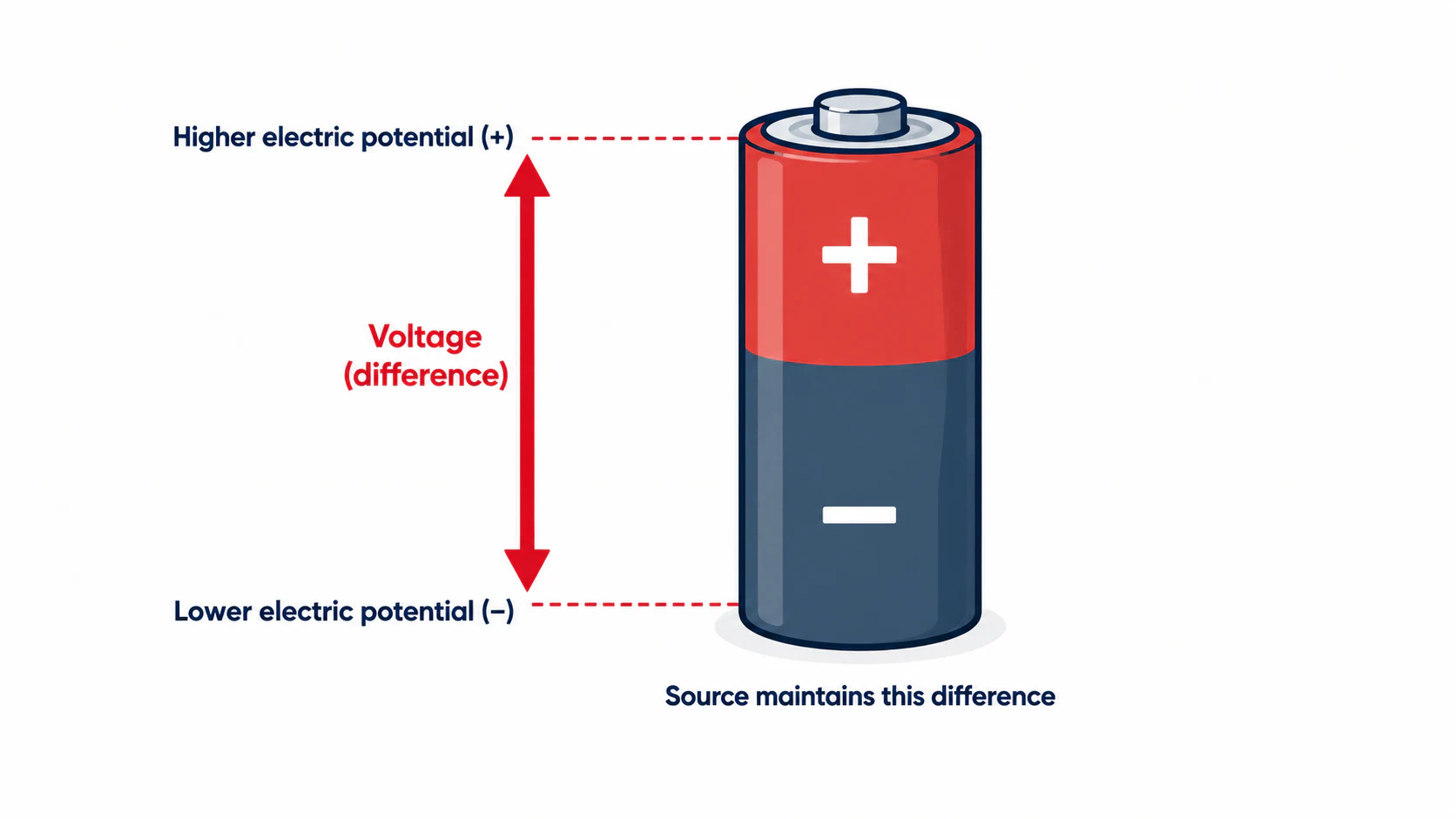

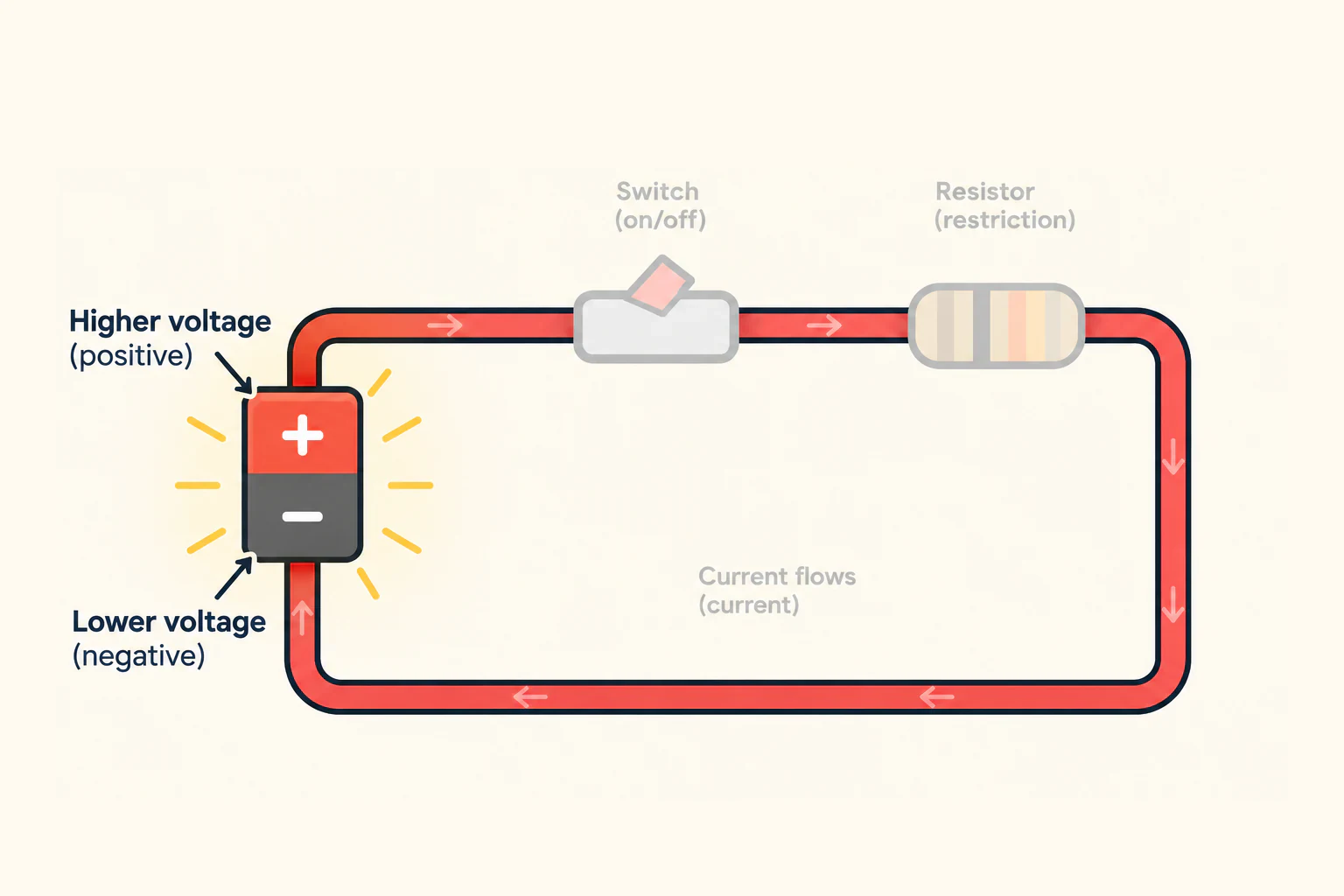

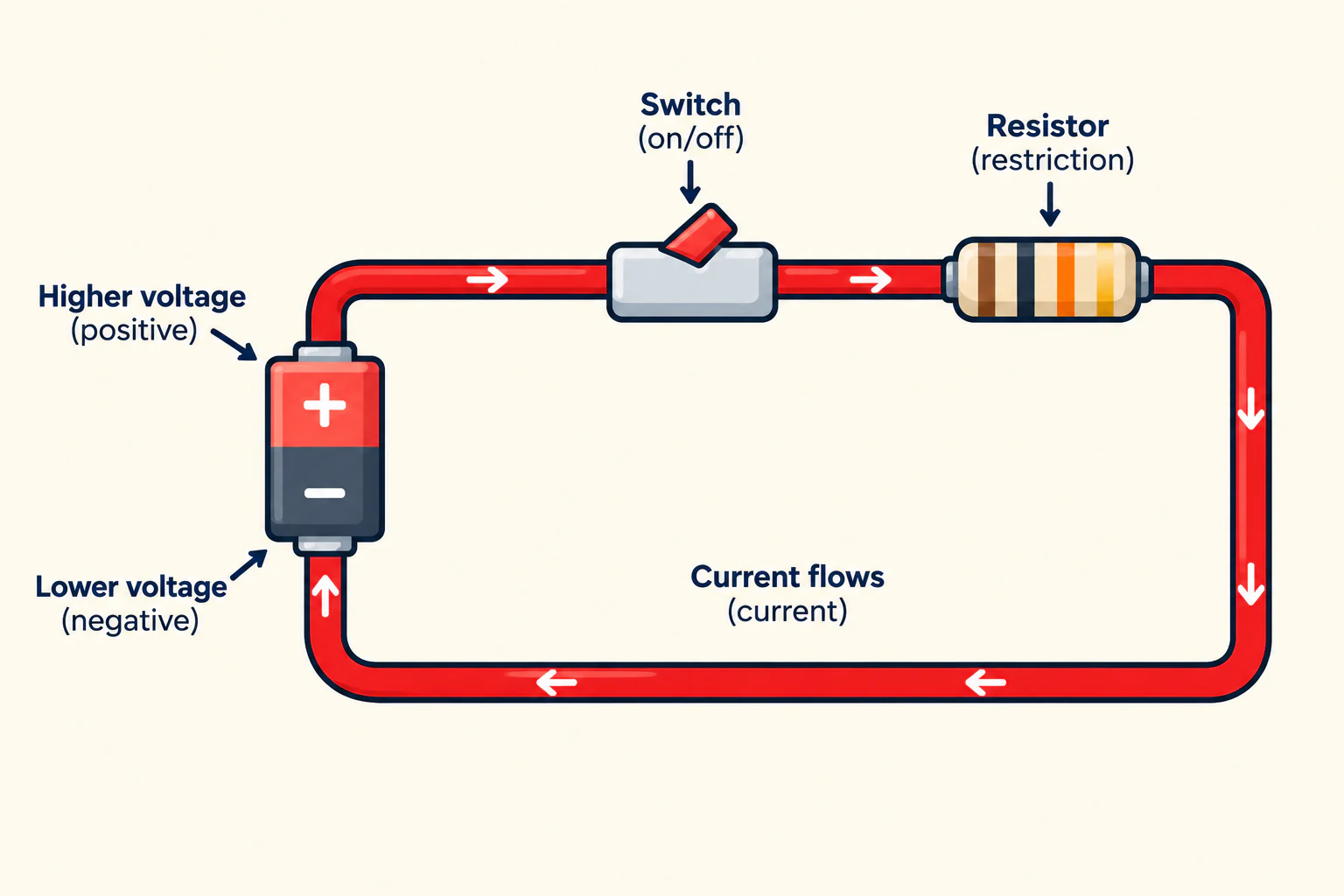

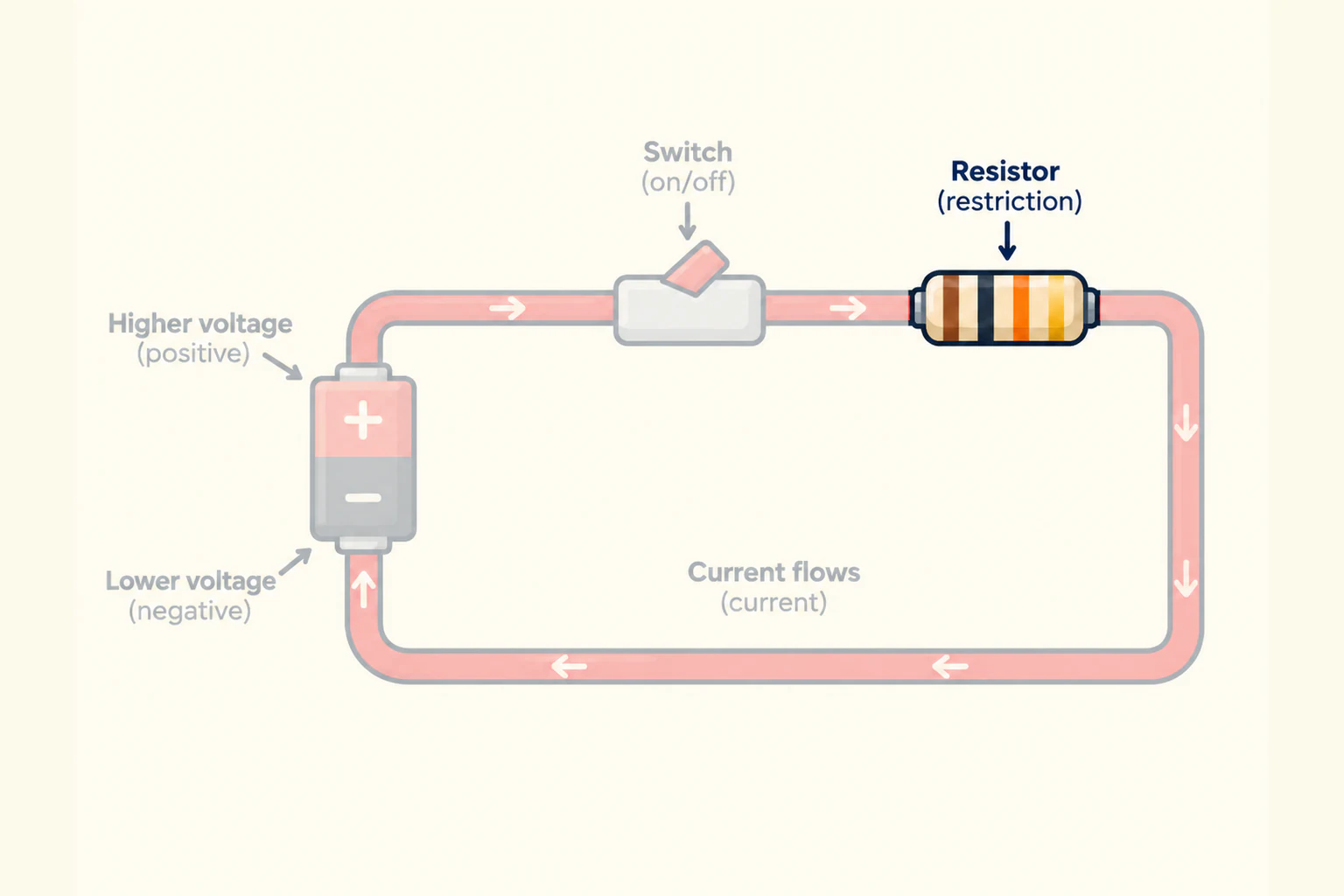

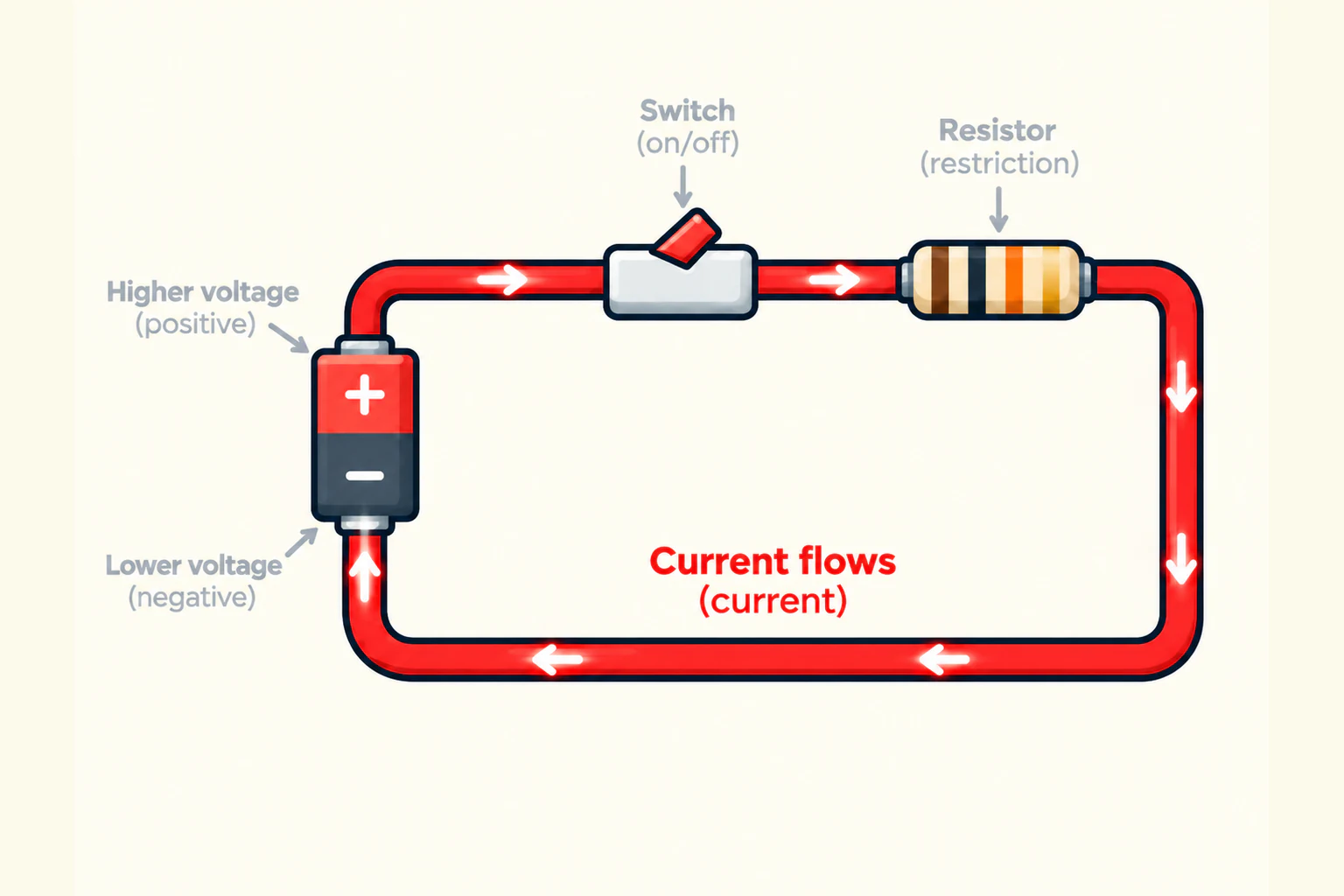

An electrical circuit has related ideas. A wire provides a path for current, voltage is the difference that drives the circuit, a switch opens or completes the path, and resistance makes current harder to move. The comparison is not exact, but it is a useful first step.
The five ideas to remember

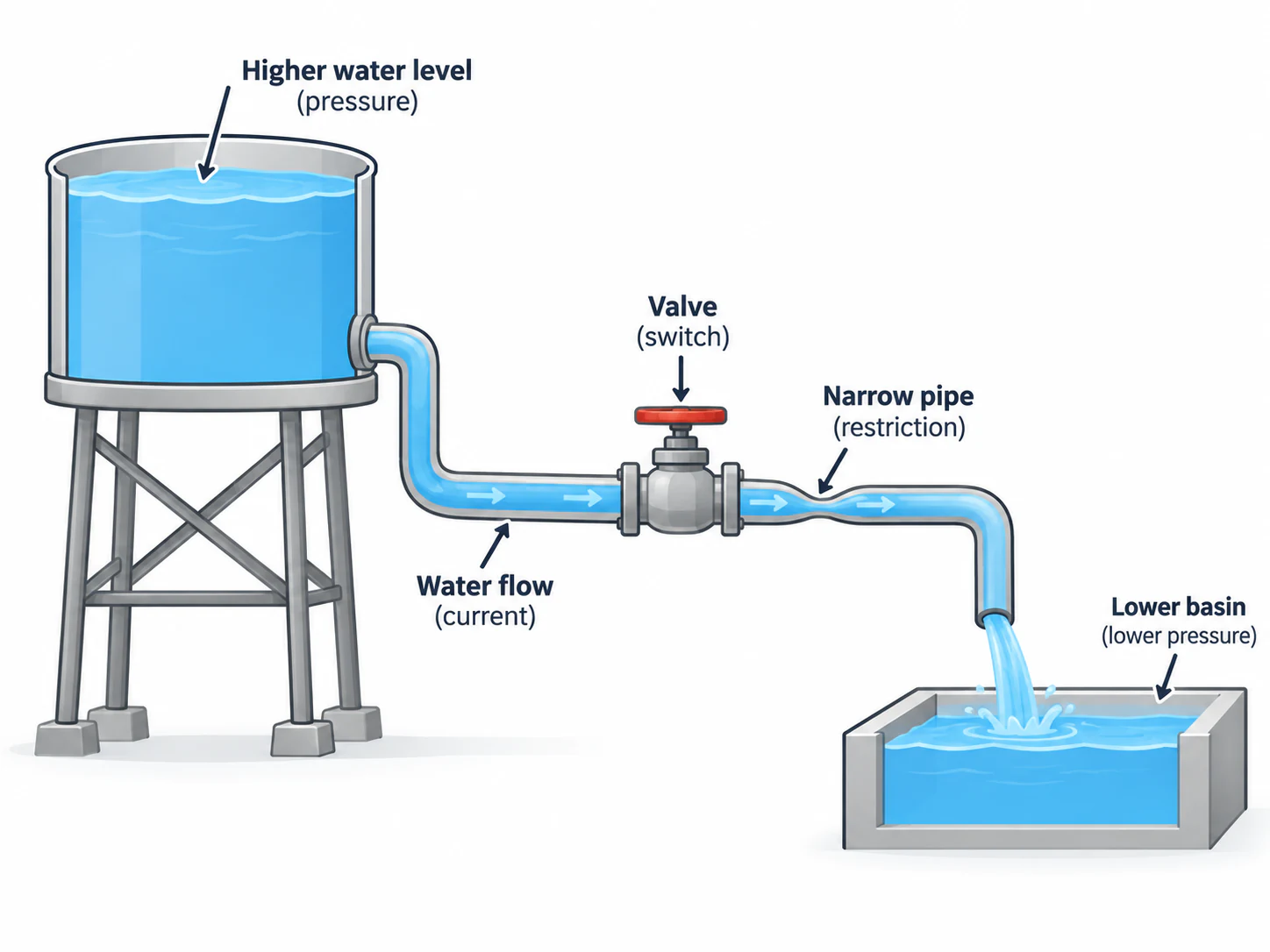

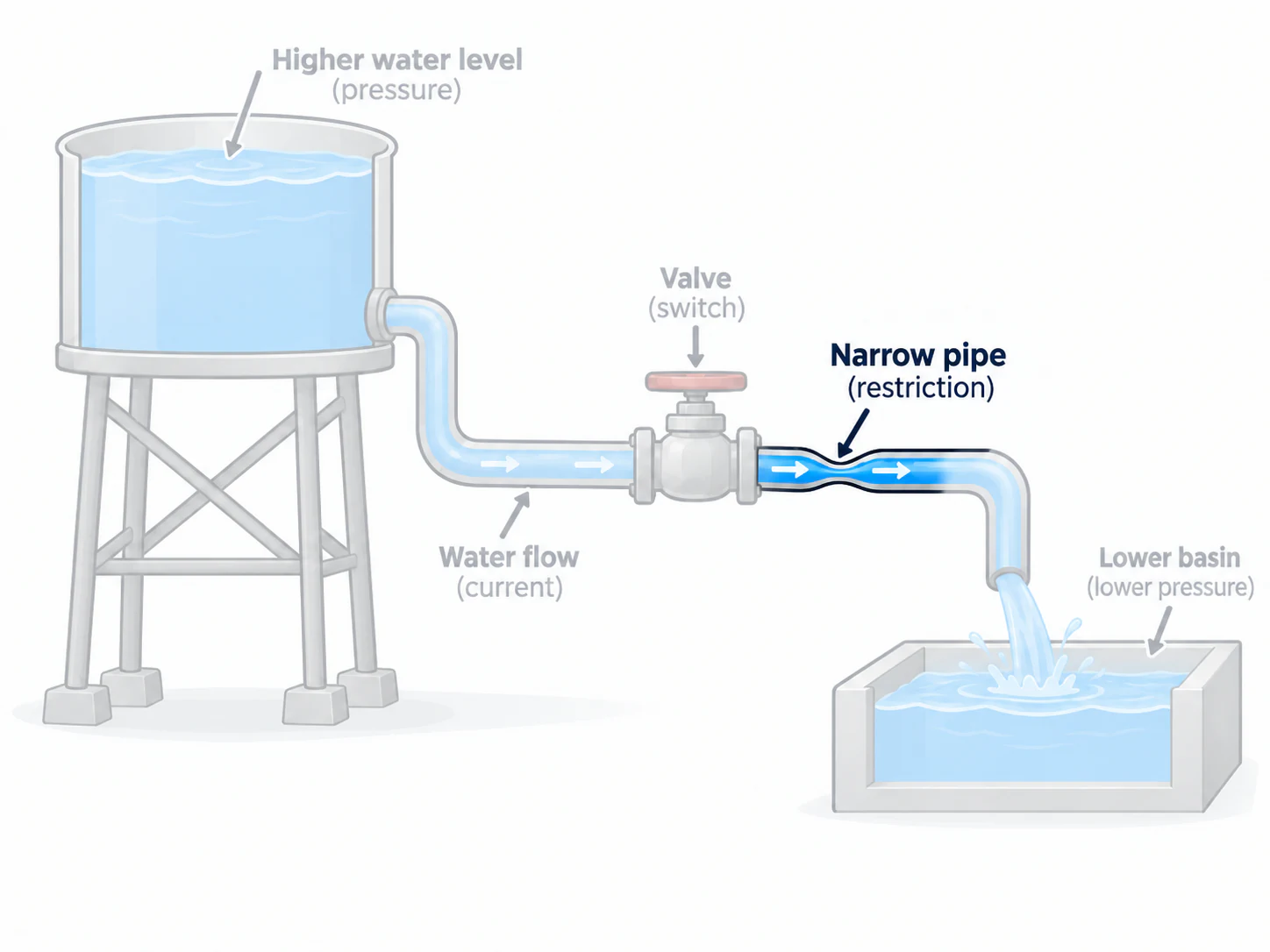

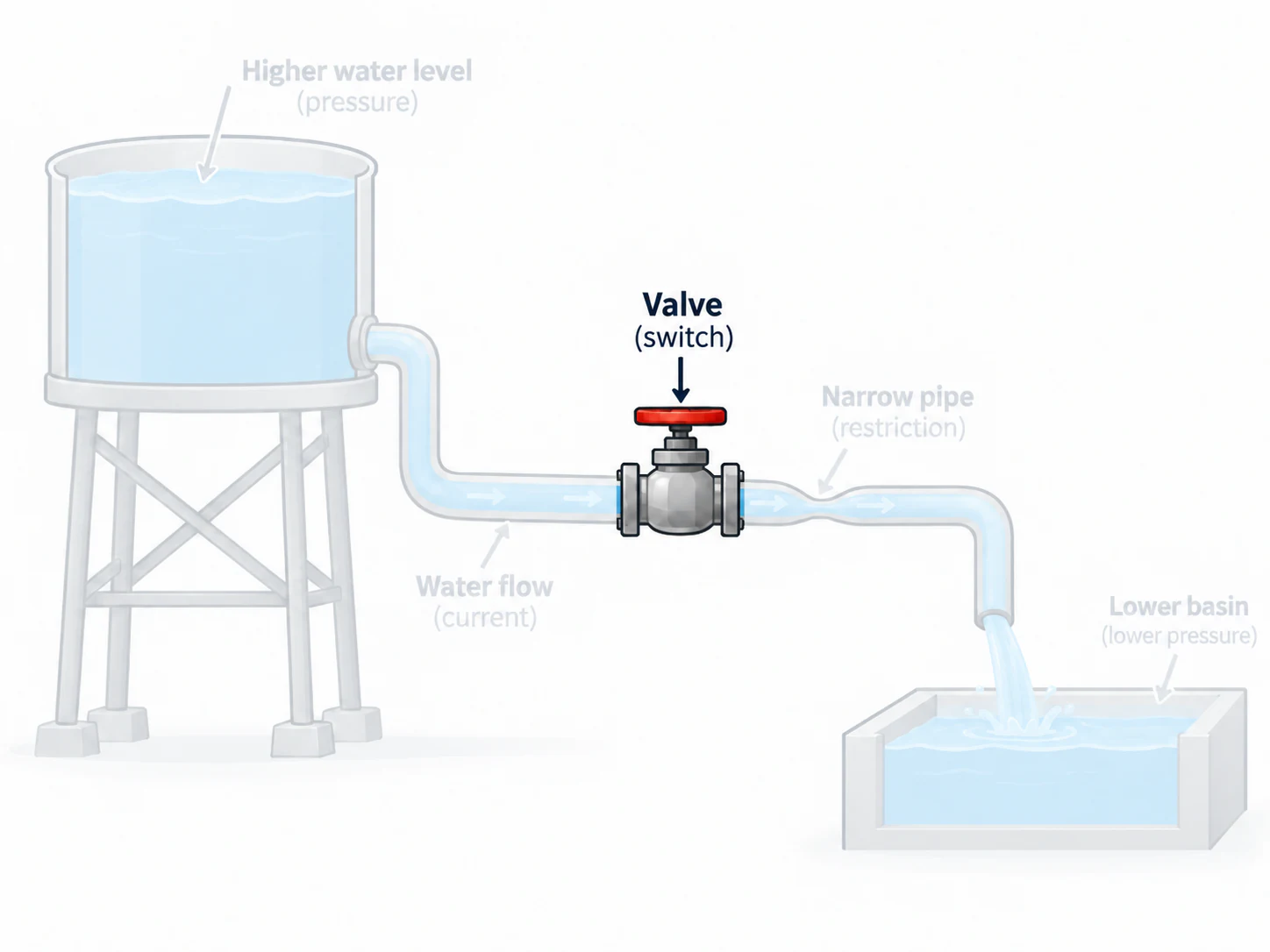

Think of a pipe as a wire, water flow rate as current, pressure difference as voltage, a valve as a switch, and a restriction as resistance. These five relationships give you a simple foundation for understanding what each part does in a basic circuit.
