Water example

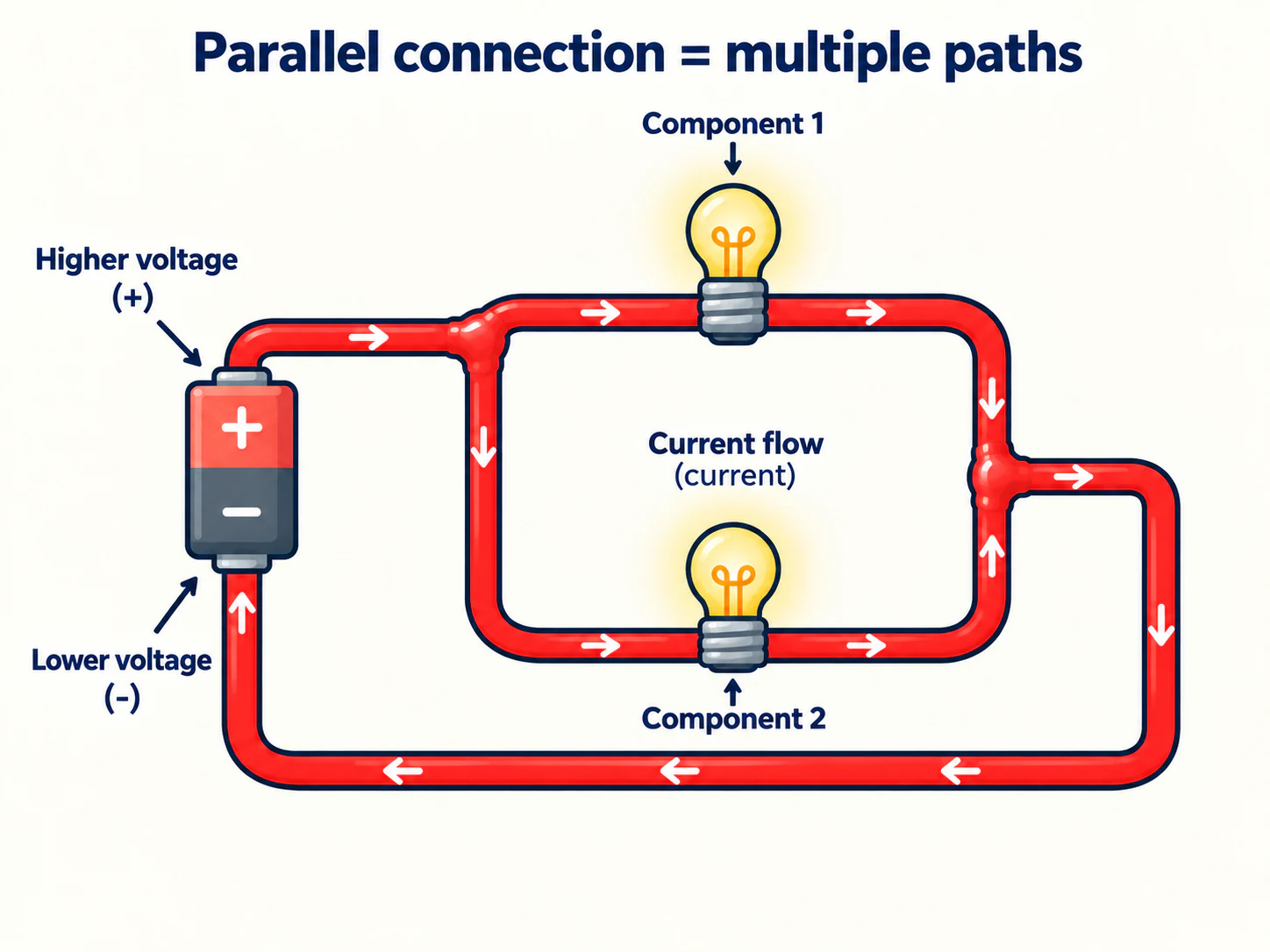

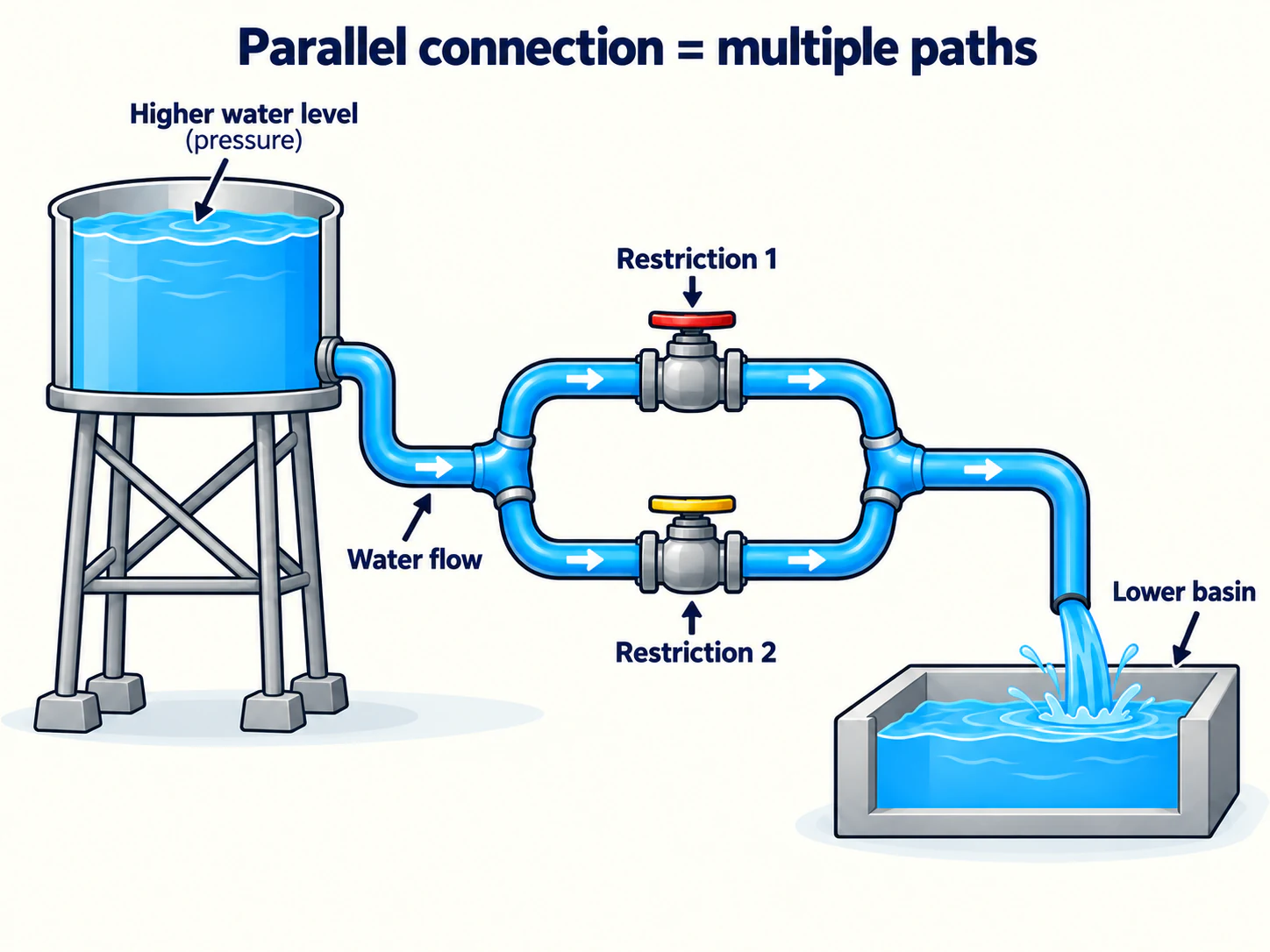

In a parallel system, the water path splits into separate branches.

Water can travel through more than one route before the paths join again.

Multiple water paths → Multiple electrical branches

Water example

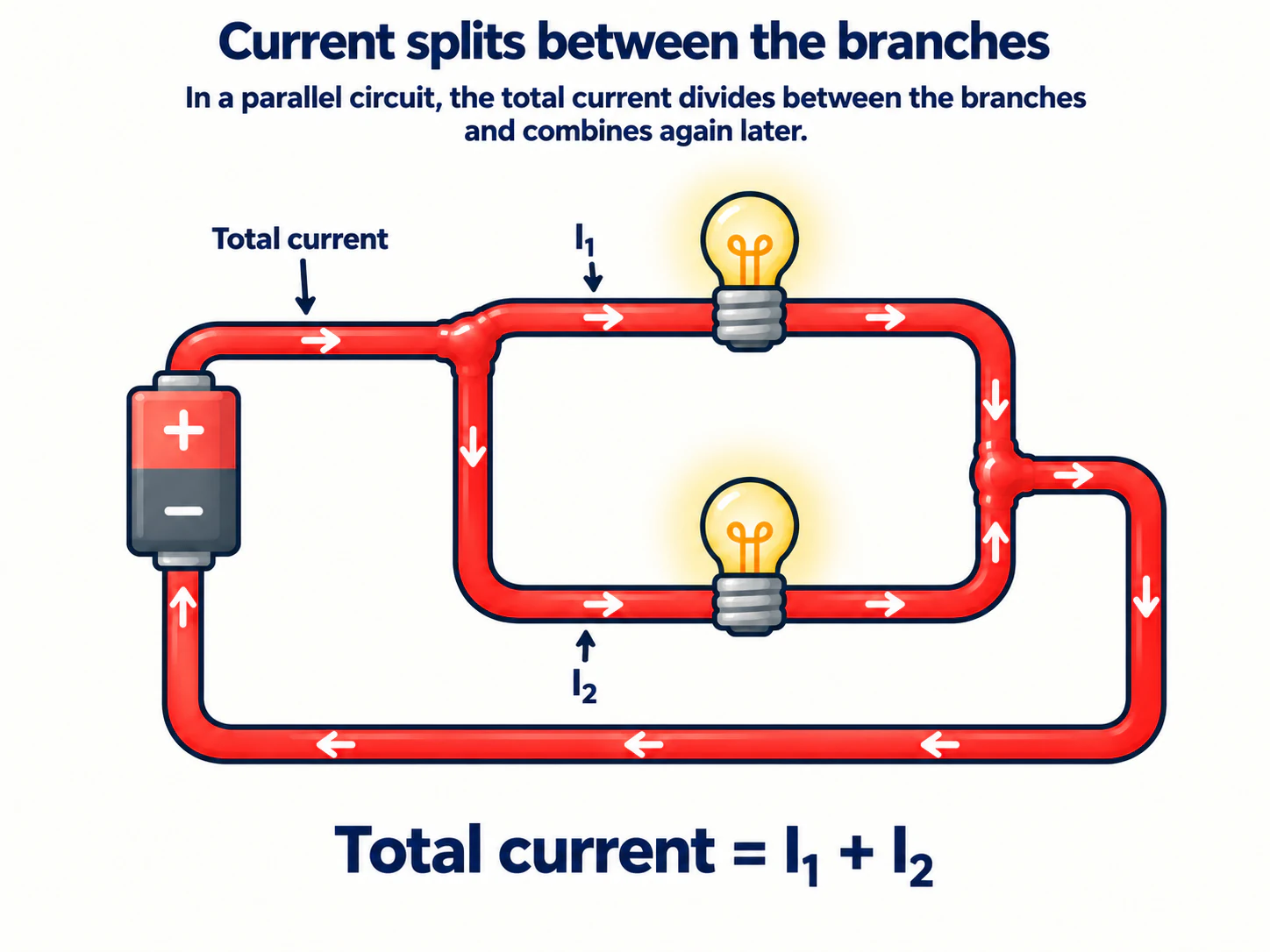

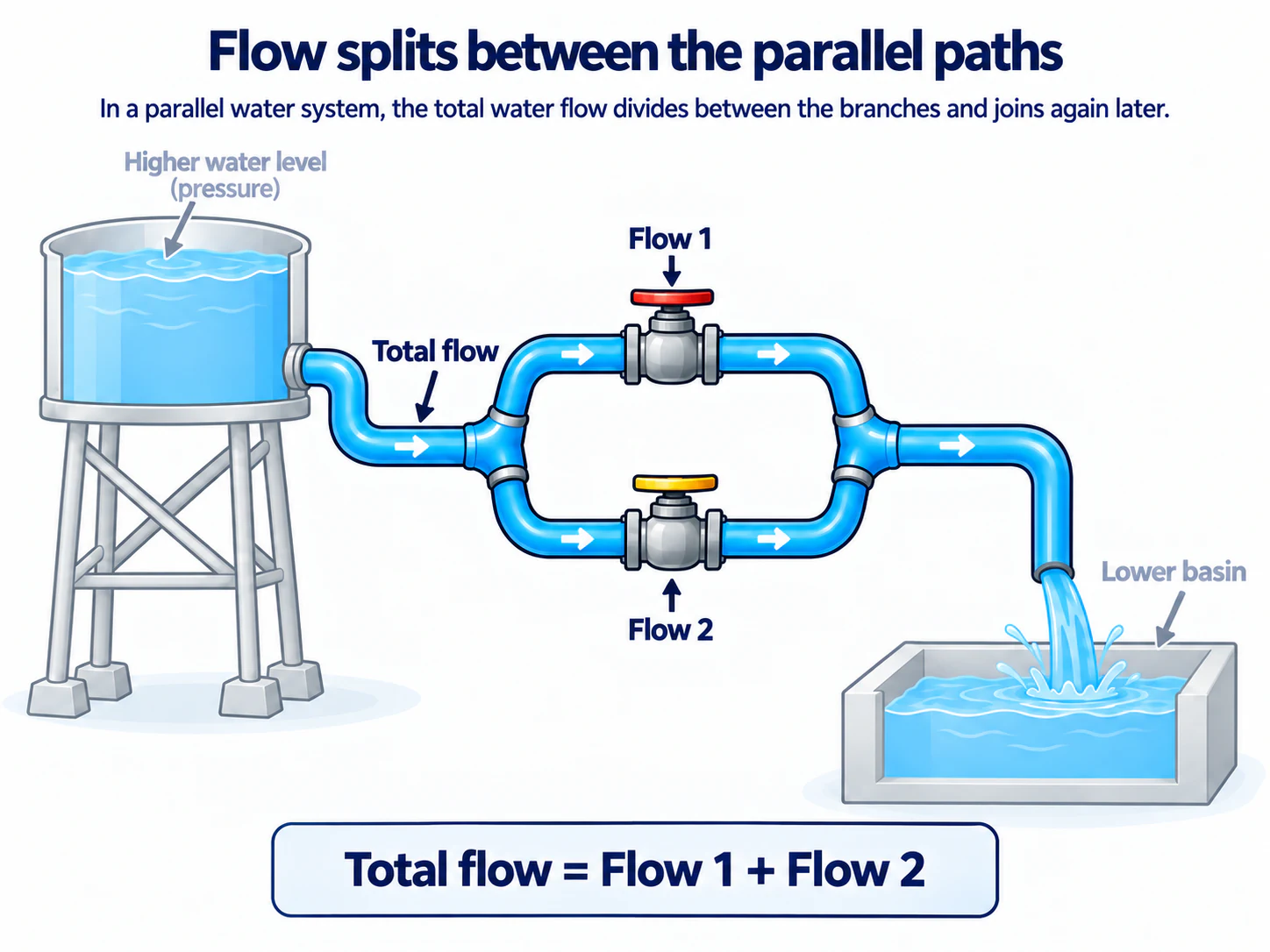

When the pipe divides, the total water flow splits between the branches.

The separate flows join together again later.

Total flow = Flow 1 + Flow 2

Water flow splits → Current splits

Water example

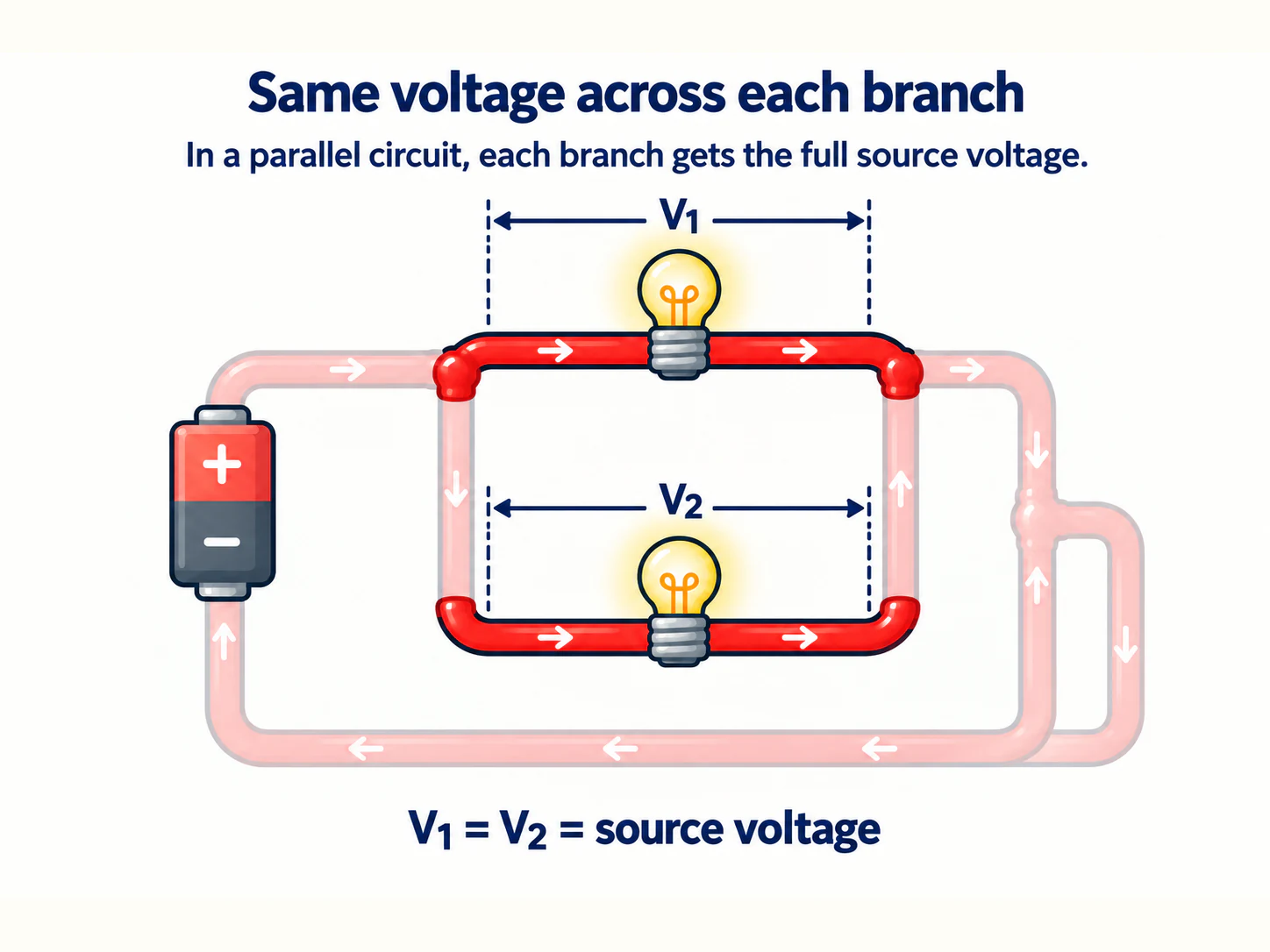

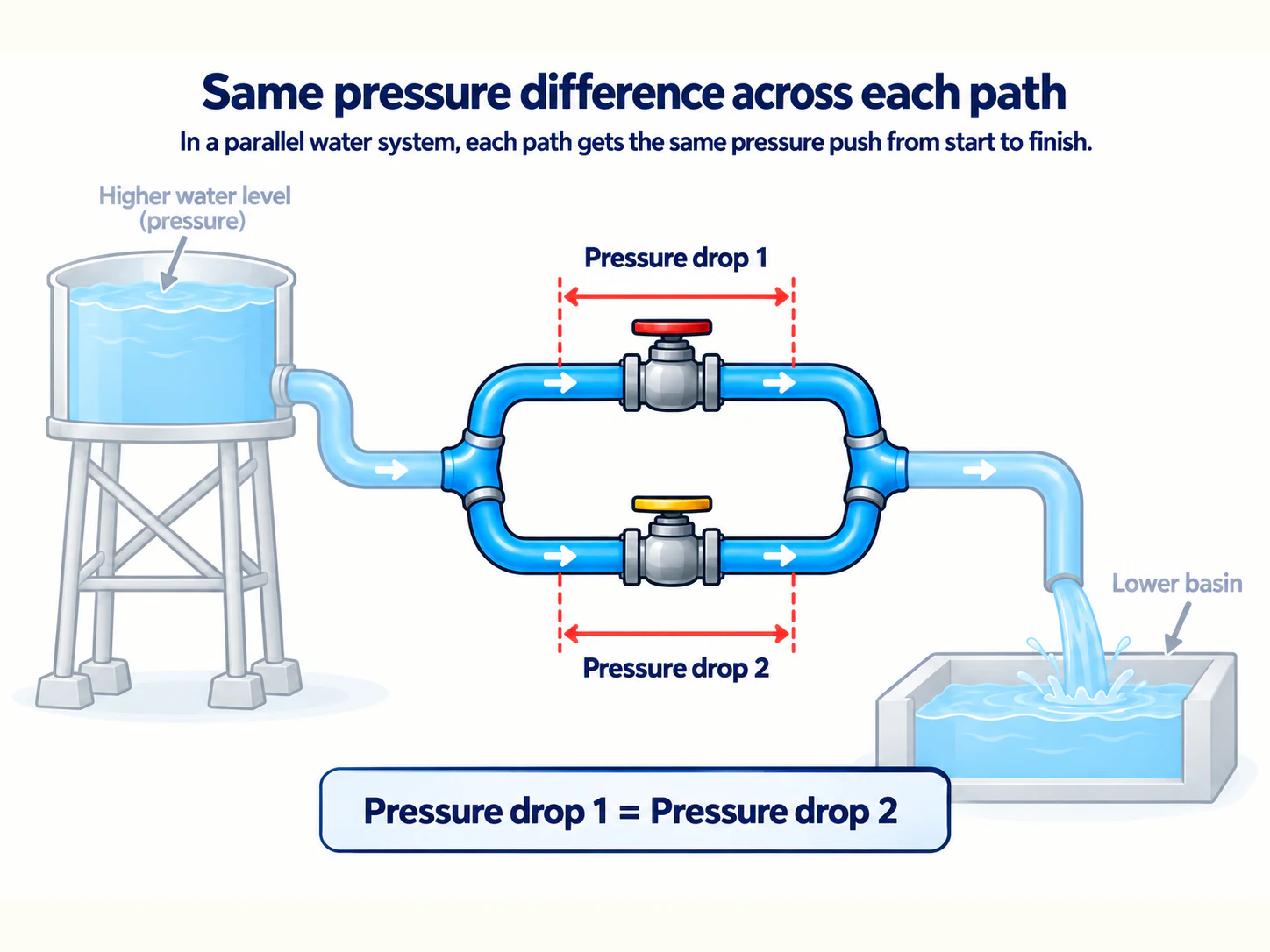

Each parallel path begins and ends at the same two pressure points.

So each path experiences the same overall pressure difference.

Water example

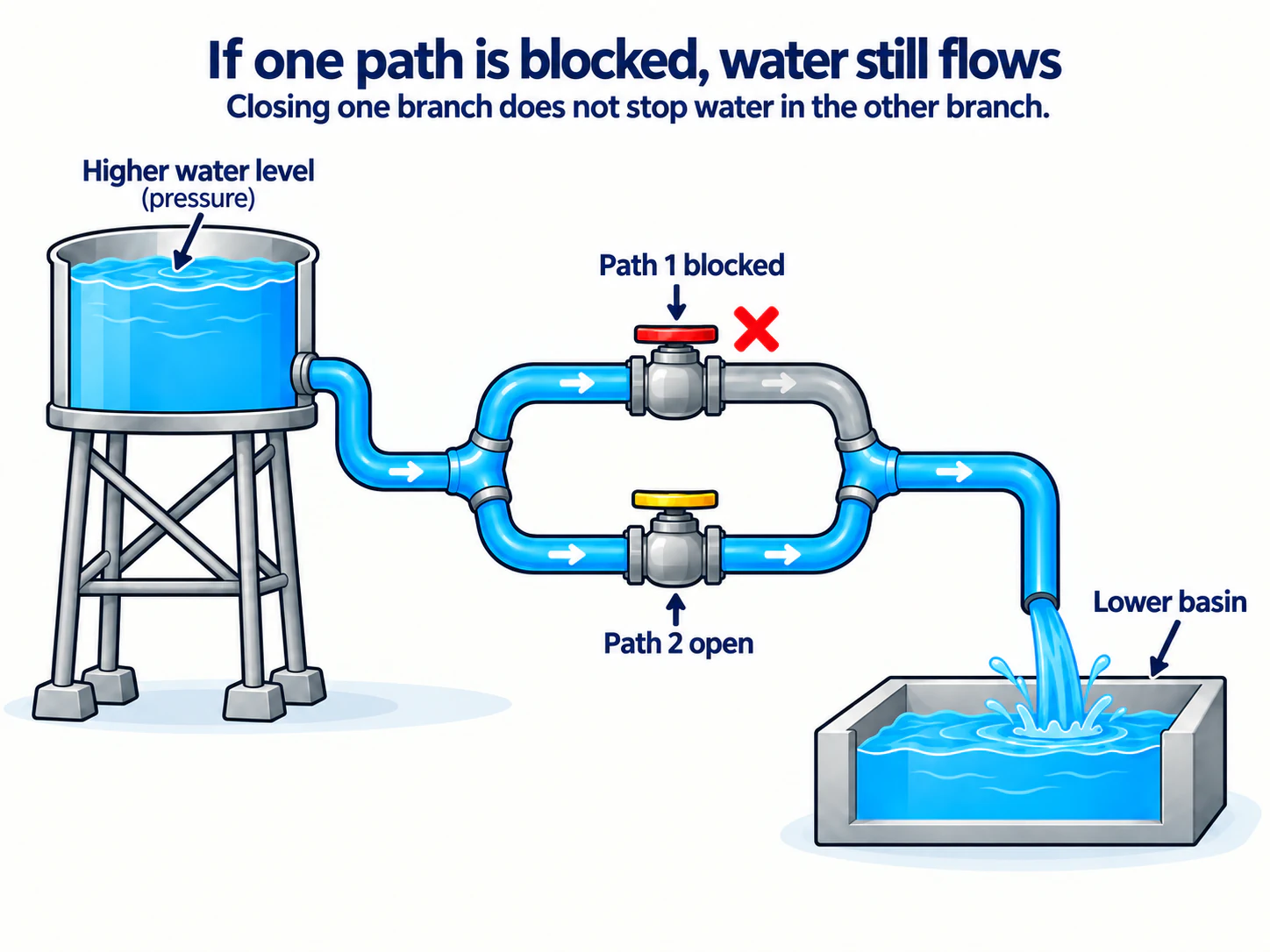

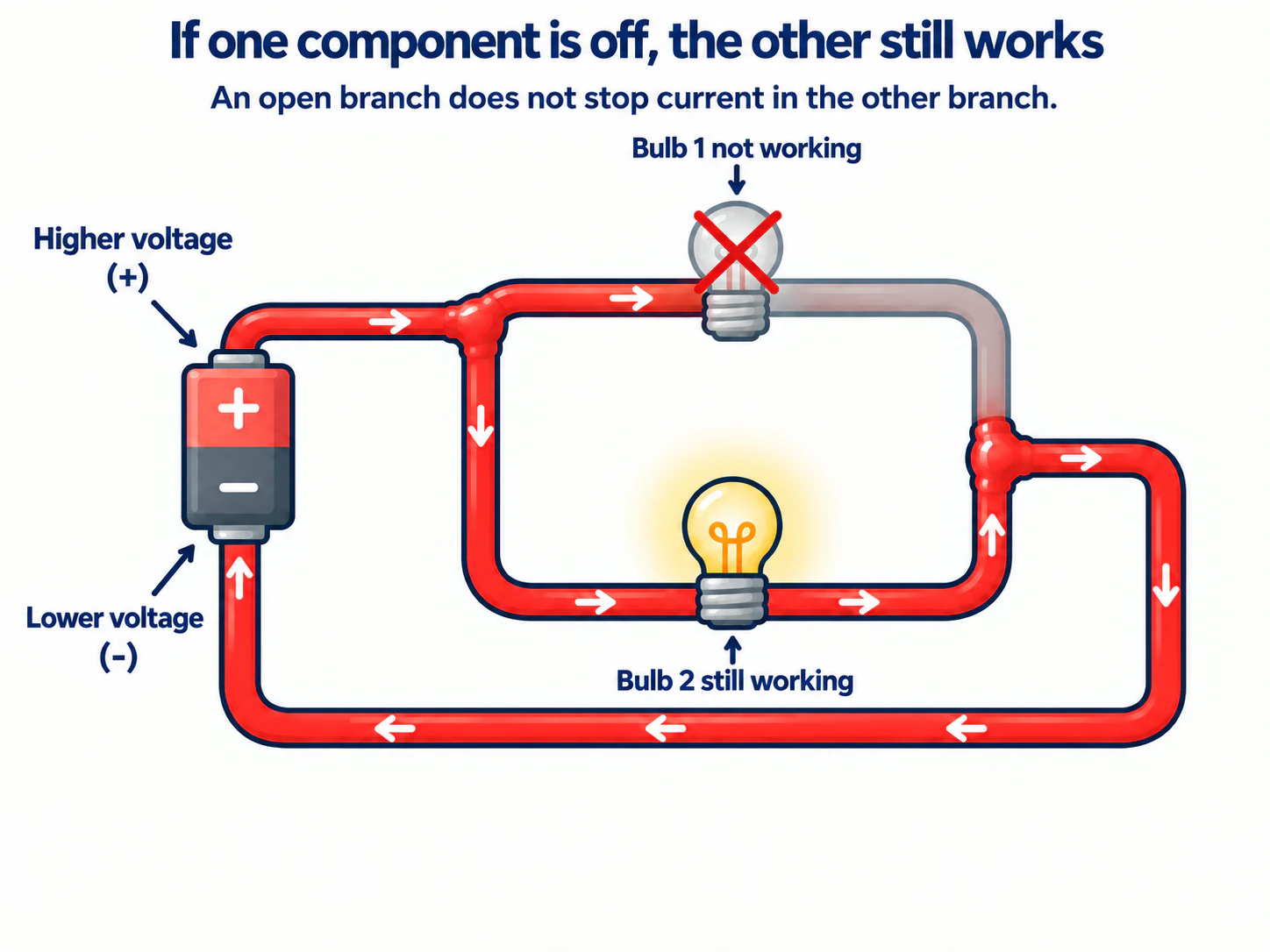

If one path is blocked, water cannot flow through that branch.

But the other path is still open, so water continues through it.

One blocked path does not stop the other path

Parallel Connection
